Description

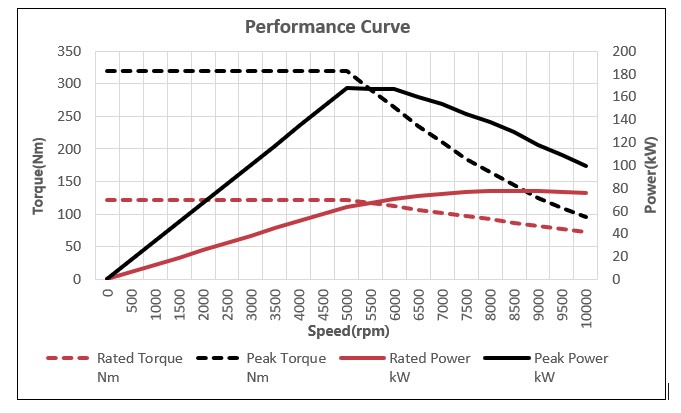

Motor and Inverter
- Voltage（Vdc): 360
- Continuously rated power（kW）: 65
- Continuously rated torque（Nm）: 120
- Peak Power（kW）: 167
- Peak Torque（Nm）: 320
- Rated Current（Arms）: 269
- Peak Current（Arms）: 700
- Rated Speed（rpm): 5200
- Maximum operating speed（rpm): 10000
- BEMF(Vpeak)/ rpm: 35/1000
- Duty Cycle: S9
Gearbox
- Max Input Torque（Nm）: 345
- Max Input Speed（rpm）: 16000
- Reduction Ratio: 11.8
- Center Distance（mm）: 184.85
- Parking lock: No
- Max Efficiency: >96%
- Lubricant and Lubrication Method: Castrol BOT352B1 BEV，Volume：0.8L±0.05L
- Operating Ambient Temperature（℃）: -40~+125℃
Environment
- Environmental rating(IP): IP67
- Ambient temperature range-operating min/max: -40℃ ~ +85℃
- Cooling Method: Liquid Cooling
- Insulation Class: H
Physical
- Temperature sensor: PT1000
- Rotor Position Sensor: Resolver
- Dimensions(mm): L：566* W:460* H:372
- Mass(kg): 91±2
