Description
Performance
- Voltage（Vdc）: 560
- Continuously rated power（kW）: 250
- Continuously rated torque（Nm）: 1500
- Peak Power（kW）: 350
- Peak Torque（Nm）: 2800
- Rated Current（Arms）: 400
- Peak Current（Arms）: 790
- Rated Speed（rpm）: 1600
- Maximum operating speed（rpm）: 3300
- BEMF(Vpeak)/ rpm: 222.5/1000

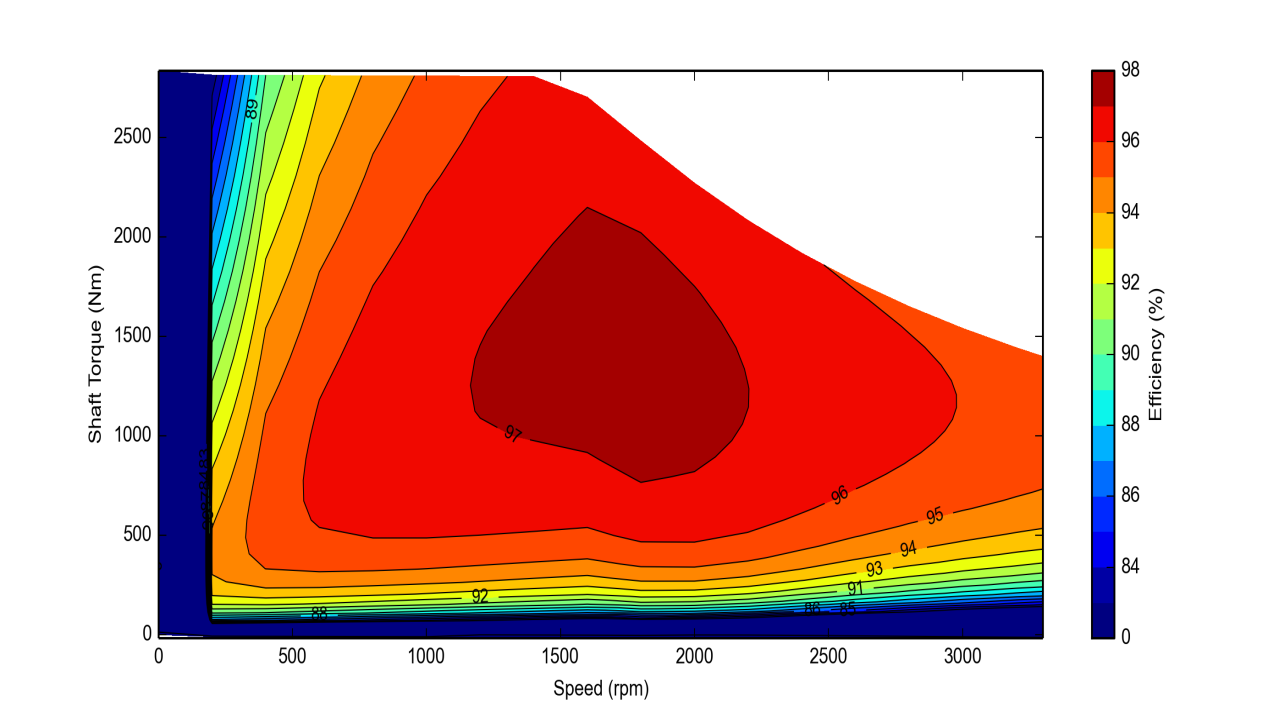

- Max Efficiency (%) : 96%
- Duty Cycle: S9
Environment
- Environmental rating (IP) : IP67
- Ambient temperature range-operating min/max : -40℃ ~ +85℃
- Cooling Method: Liquid Cooling
- Insulation Class: H
Physical
- Temperature sensor: NTC104
- Rotor Position Sensor: Resolver

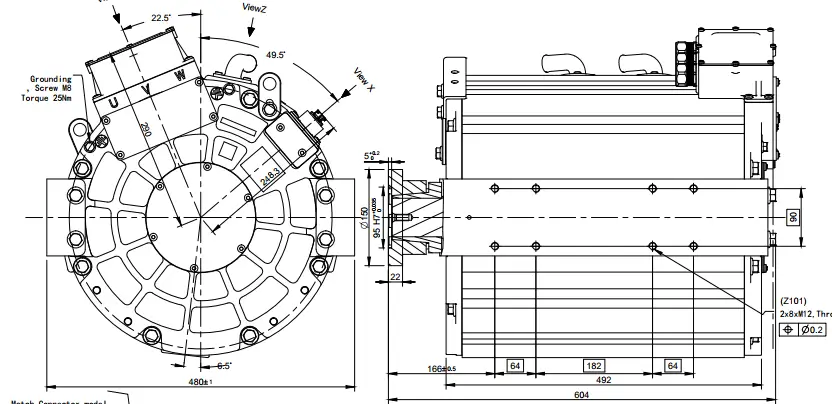

- Motor Size(mm): 430×512
- Mass(kg): 275

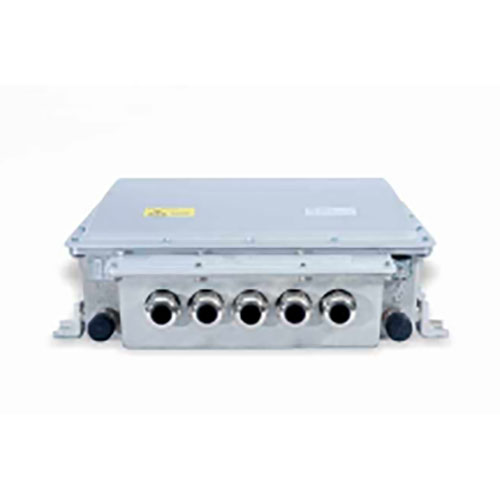

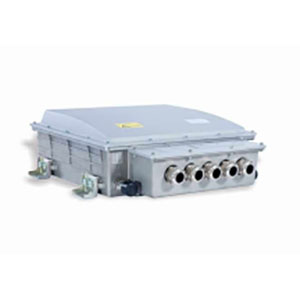

350kW Inverter
- Adaptable motor type: Permanent magnet synchronous motor
- Applicable vehicle types: 9-18m Bus/Rail vehicle/Van/Heavy truck
- Product types: V6-H-4D 355G
- Rated input voltage: DC 540V
- Rated power: 355kW
- Input voltage range: DC 350V-750V
- Rated output current: 600A
- Maximum output current: 900A
- Output frequency range: 0~800Hz
- Protection level: IP67
- Cooling type: Water cooling

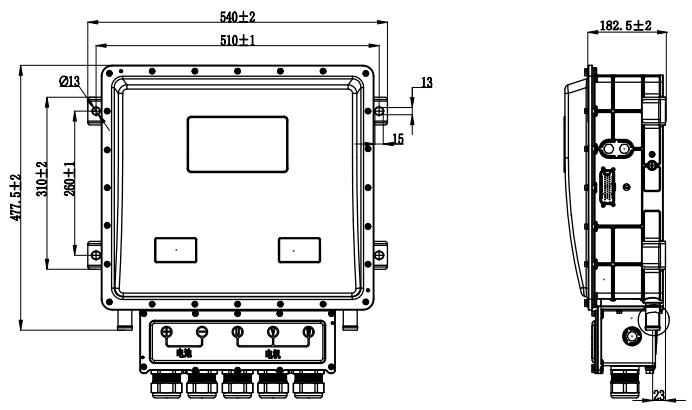

- Outline dimension/Weight: 556*540*183(mm) / 28kg
