Description

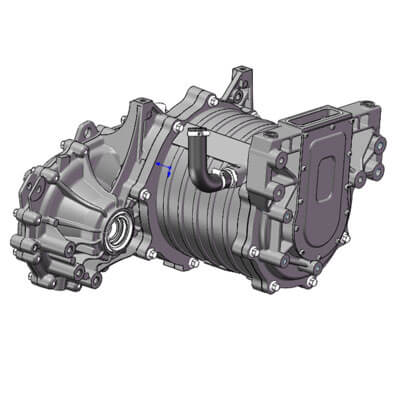

Motor Summary
- Motor Type: IPM
- Stator OD（mm）: 180
- Phase Number: 3
- Continuous Power（Kw): 30
- Continuous Torque（Nm): 60
- Base Speed(rpm: 4500
- Back EMF@1000rpm: 29.8Vrms
- IP: IP67
- Cooling Method: Liquid Cooled
- Pole Pairs: 4
- Stack length（mm): 97.5
- Max Phase Current（Arms): 252
- Peak Power（Kw): 70
- Peak Torque（Nm): 150
- Max Speed（rpm): 13000
- Max Efficiency: 96%
- Weight（kg): 45
- Motor Size: See Drawing

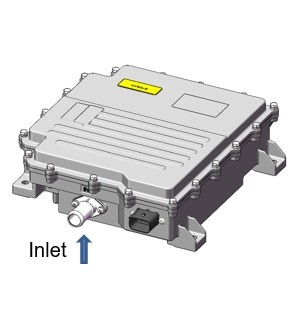

Inverter Summary
- Bus Voltage Range (V): 270-450
- Rated Bus Voltage (V): 350
- Inverter kVA Rating (kVA): 108
- Peak Output Current@30s (Arms): 252
- Rated Output Current (Arms): 103
- Max. Coolant Inlet Temperature (℃): 65
- Max Efficiency (%): 99.5
- Ambient Temperature Range (℃): -40-85

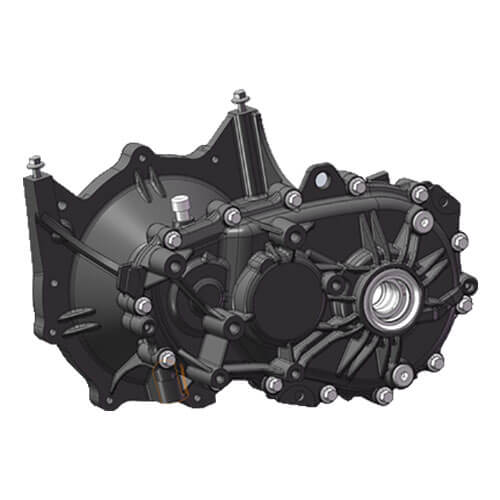

Gearbox Summary
- Max Output Torque（Nm): 1800
- Max Input Speed（rpm): 15000
- Reduction Ratio: 10.89

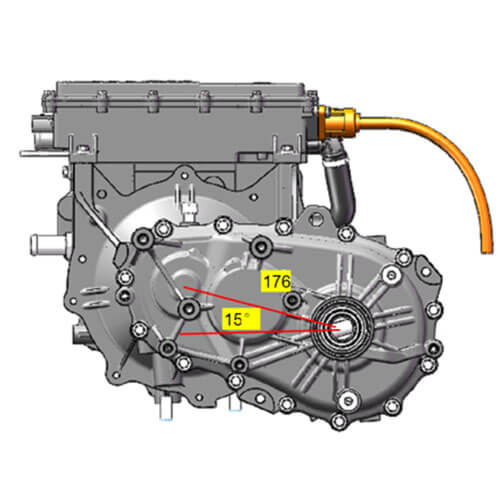

- Center Distance（mm): 176
- Parking lock: No
- Overall Efficiency: >96%
- Design Life: 300,000km or 10 years
- Lubricant and Lubrication Method: Castrol BOT352B1 BEV，Volume：0.65L-0.75LSplash
- Operating Ambient Temperature（℃): -40~+125
