Description
Motor Summary
- Motor Type: IPM
- Stator OD（mm）: 370 (10 turns winding)
- Phase Number: 3
- Continuous Power（kW）: 189
- Continuous Torque（Nm） : 990
- Base Speed(rpm） : 1820
- Back EMF@1000rpm : 220Vrms
- IP : IP67
- Cooling Method : Water Cooled
- Pole Pairs : 8
- Stack length（mm）: 280
- Max Phase Current（Arms）: 483

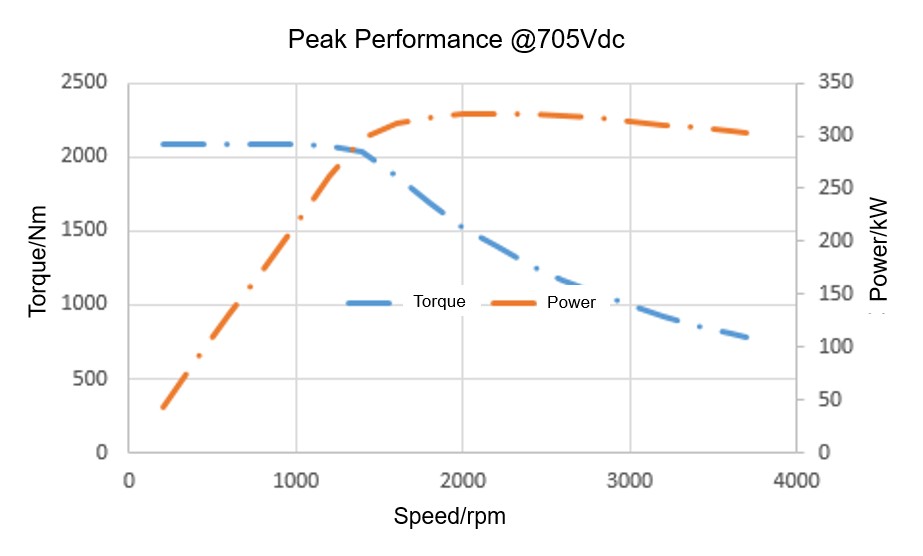

- Peak Power（kW）: 300
- Peak Torque（Nm）: 2040
- Max Speed（rpm）: 3700
- Max Efficiency : 97%
- Weight（kg）: 235
- Motor Size : 430×452
Invertor Summary
- Bus Voltage Range (V) : 450-830
- Rated Bus Voltage (V) : 705
- Inverter kVA Rating (kVA) : 580/648
- Peak Output Current@30s (Arms) : 483/540
- Rated Output Current (Arms) : 300
- Max. Coolant Inlet Temperature (℃) : 45
- Max Efficiency (%) : 99.5
- Size (mm) : 310L*298W*87H
- Ambient Temperature Range (℃) : -40-85
