Description

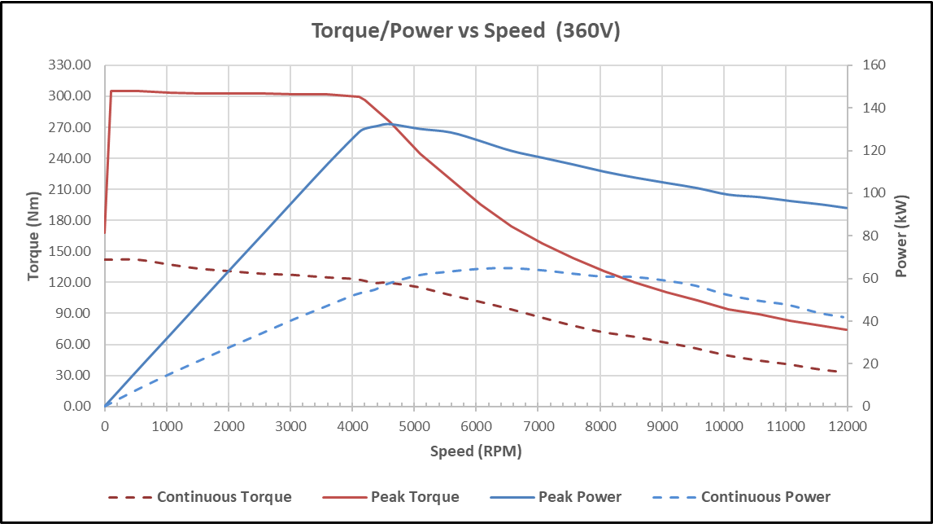

IGBT Drive System 120kW/360Vdc
- Nominal Input Voltage: 360Vdc
- Input Voltage Range: 260- 440Vdc
- Motor Base Speed: 4100 RPM
- Motor Max Speed: 12000 RPM
- Motor Peak Power Output: 133 kW
- Motor Continuous Power: 65 kW @ 65 °C
- Peak Torque: 303Nm
- Max Phase Current: 524 Arms
- Weight: 55.4kg
