Description
SiC Drive System 75kW/700Vdc
- Nominal Input Voltage: 700Vdc
- Input Voltage Range: 490-830 Vdc
- Motor Base Speed: 3200 RPM
- Motor Max Speed: 8000 RPM

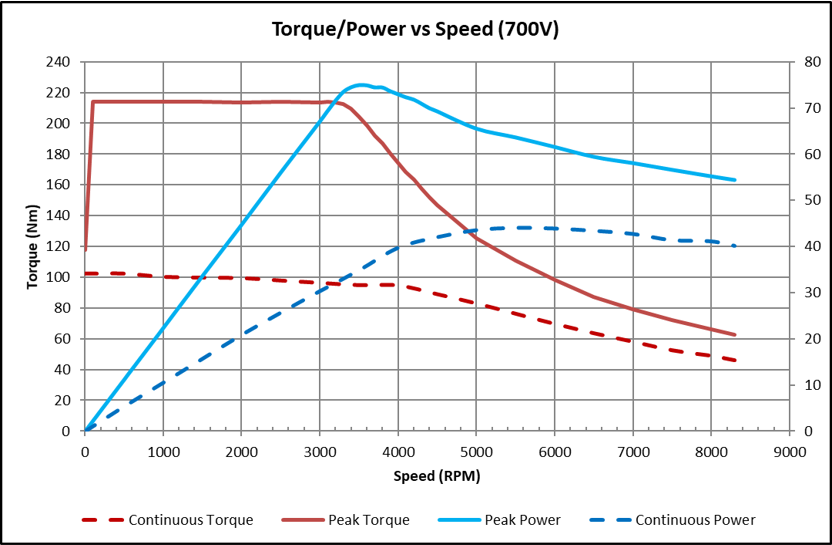

- Motor Peak Power Output: 75 kW
- Motor Continuous Power: 44 kW @ 65 °C
- Peak Torque: 214Nm
- Max Phase Current: 160 Arms
- Weight: 39.9kg
